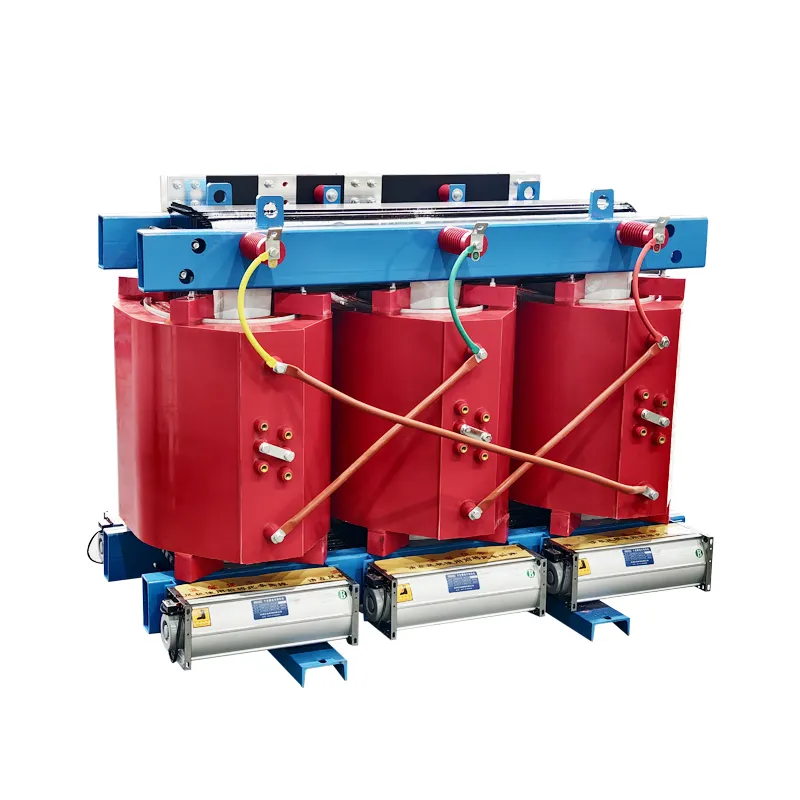

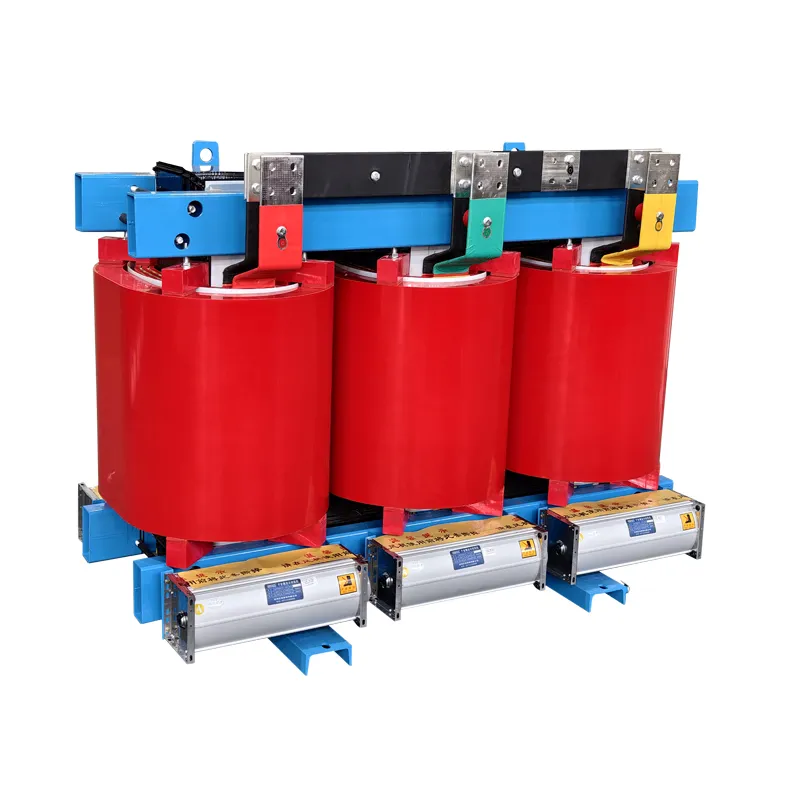

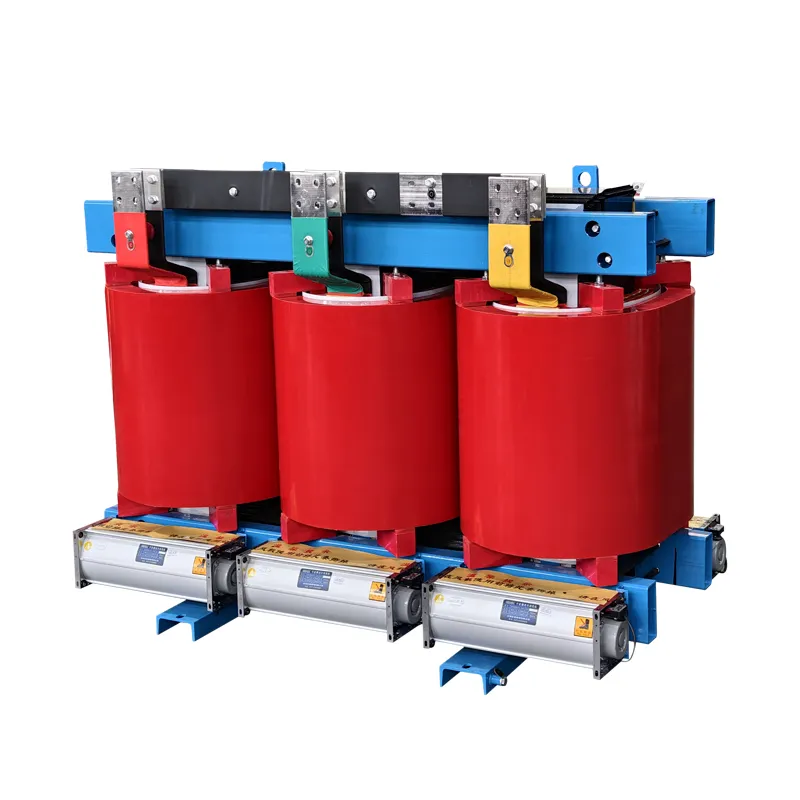

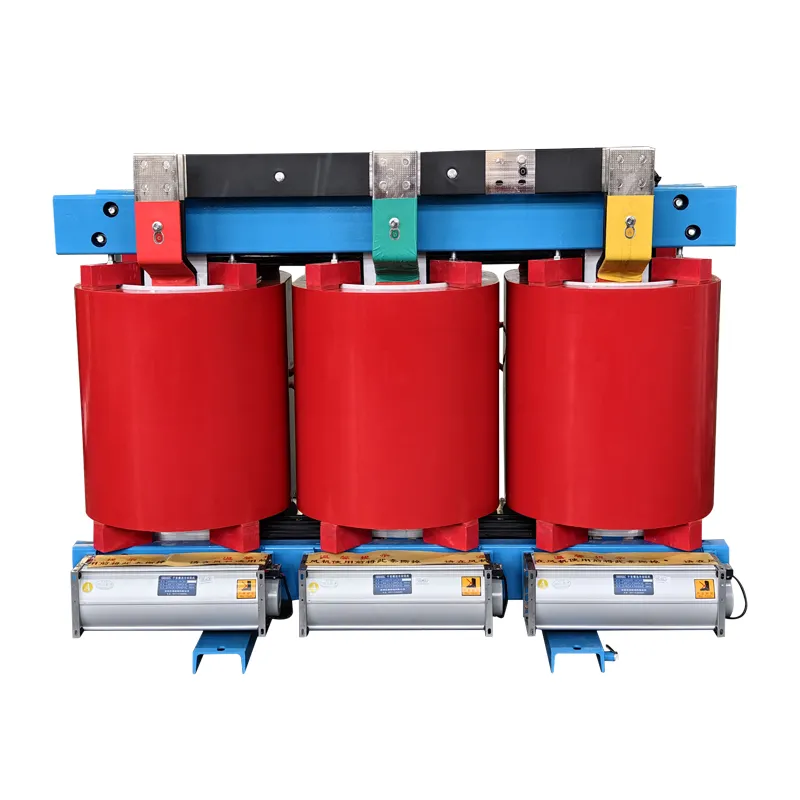

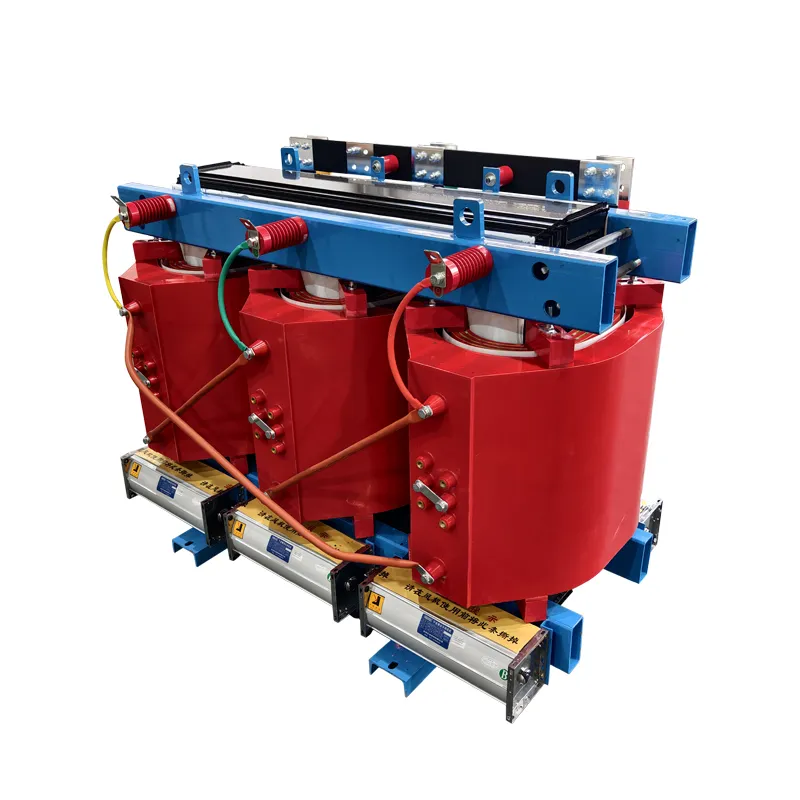

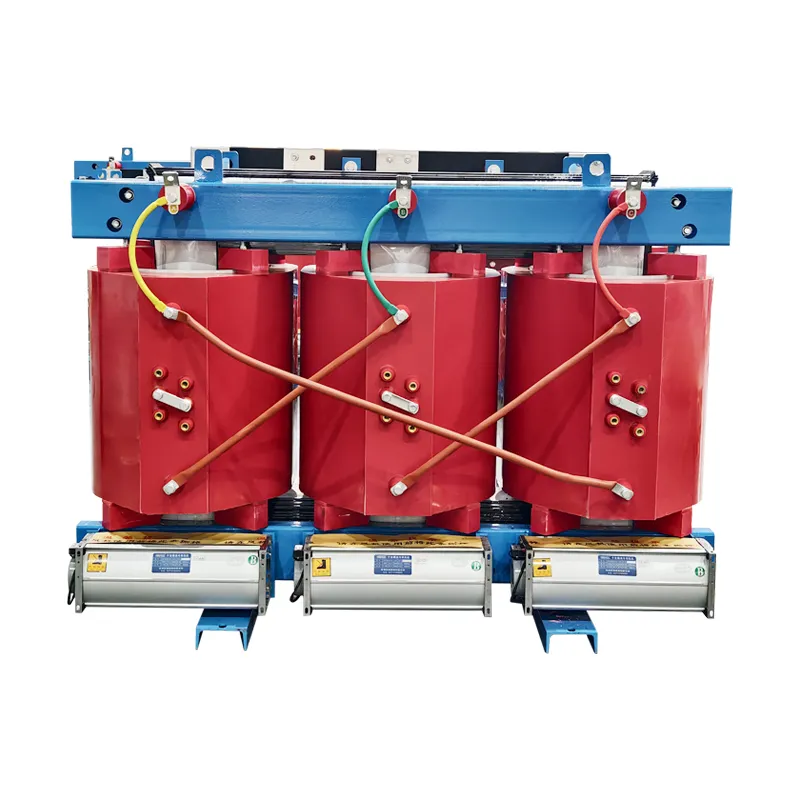

scb10-100kva Dry-type Transformer

The resin-insulated dry-type transformers are independently developed by our company by introducing advanced

foreign technologies, including SC9, SCB9 series and SC10, SCB10 series dry-type transformers with filled thin

insulation. As the coils are encapsulated by epoxy resin, they are flame-retardant, fireproof, explosion-proof,

maintenance-free, pollution-free, and compact in size, allowing direct installation at the load center. Meanwhile, the

scientific and reasonable design as well as casting process enable the products to have lower partial discharge, low

noise, and strong heat dissipation capacity. Under forced air cooling conditions, they can operate continuously at

140% of the rated load for a long term. Equipped with an intelligent temperature controller, they feature functions

such as fault alarm, over-temperature alarm, over-temperature tripping, and black box, and can be connected to a

computer via an RS485 serial interface for centralized monitoring and control.

Due to the above characteristics, the dry-type transformers of our company are widely applied in power transmission

and distribution systems, such as important venues like hotels, airports, high-rise buildings, commercial centers, and

residential communities, as well as harsh environments such as subways, thermal power plants, ships, and offshore

drilling platforms.

TechnicalParametersof1okVClassSC(B)10SeriesResin-lnsulatedDry-TypeTransformers
